Socket head cap screws
ASTM A574 alloy in thermal black oxide with oil, plus 18-8 stainless button and 82 degree flat heads for guards and covers.
Sizes#4 to 1 in, M3 to M24
Price basisBox of 100, 50 above 1/2 in
MOD 01 / Catalogue index
Eleven sections of marked fasteners and saw-cut blanks, each priced on a stated basis.
This is the whole shelf of an industrial fastener supplier in Texas that does not try to carry everything. Socket head cap screws, graded hex, nuts and washers, rod and B7 studs, anchors, rivets, inserts, pins and keystock, bar and plate cut to length, and the consumables that go into assembly. 22 stocked lines across those 11 sections.

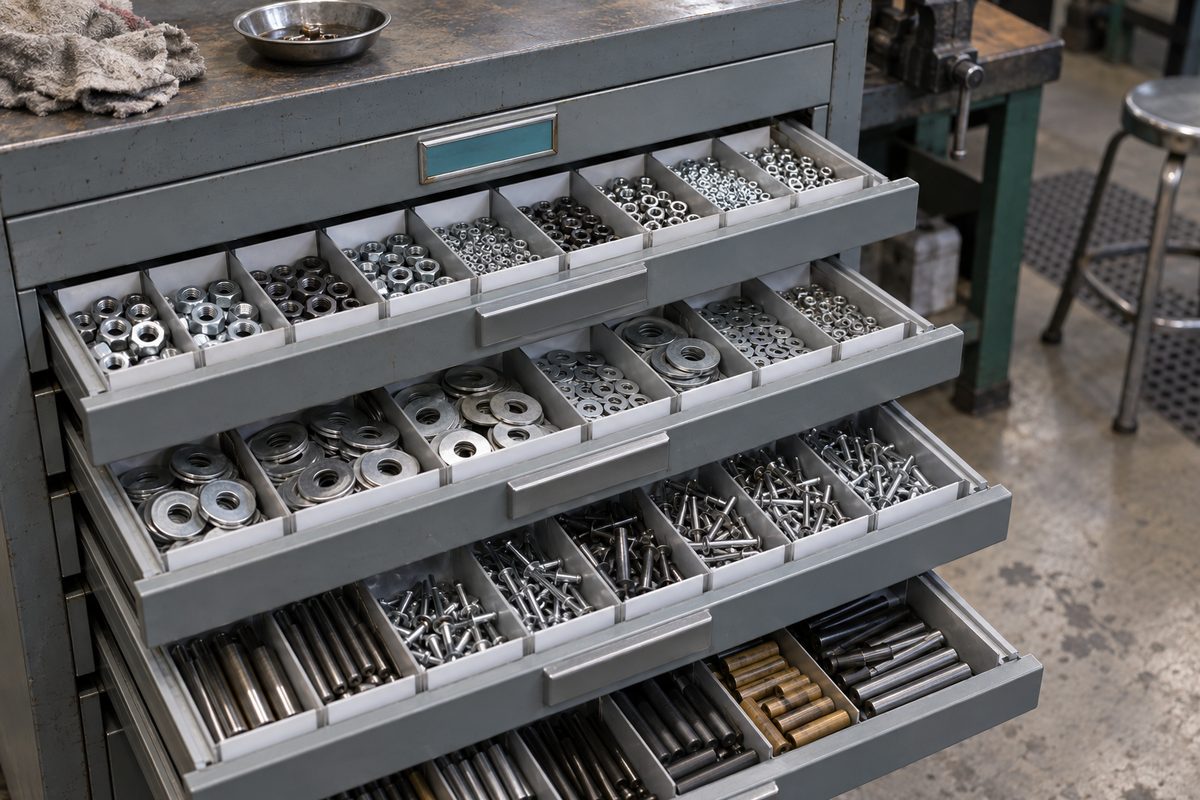

CAB 02 / Drawers openSorted by size
Every section, its range and how it is priced
11 sections / 22 linesGrade 5 and Grade 8 hex cap screws
SAE J429 Grade 5 in clear zinc with three radial lines, Grade 8 in yellow zinc with six. Plain finish Grade 8 on request.
Sizes1/4 to 1 in
Price basisBox of 50 or 100 by diameter
Nuts and washers by the box
Grade 5 and Grade 8 finished hex nuts, nylon-insert lock nuts, SAE and USS flats, through-hardened flats, split lock and fender washers.
MaterialZinc steel, Gr 8, 18-8
Price basisBox of 100
Threaded rod and B7 studs
Zinc low-carbon all-thread cut to length with the cut end chased, and ASTM A193 B7 studs paired with two A194 2H heavy hex nuts.
Sizes1/4 to 1 in UNC
Price basisPer stick, per cut piece, per stud set
Wedge and drop-in concrete anchors
Wedge anchors in zinc and 304 stainless, drill bit equal to anchor diameter. Flush drop-ins for overhead rod hangers, with the matched setting tool.
Sizes1/4 to 3/4 in
Price basisBox of 25 or 50, tool each
Blind rivets, aluminum, stainless and structural
5052 open-end rivets with steel mandrels for sheet work, 304 stainless and locked-mandrel structural rivets for shear and outdoor steel.
Sizes1/8 to 1/4 in, grip 0.020 to 0.500 in
Price basisBox of 100, 250 or 500
Helical thread inserts and rivet nuts
304 stainless wire inserts in 1D, 1.5D and 2D lengths with STI taps, and flanged rivet nuts for putting a thread in thin sheet.
Sizes#4 to 1/2 in, M3 to M12
Price basisPack of 25 or 100, taps each
Hardened dowel pins and keystock
Alloy dowels at 58 HRC minimum, 0.0002 in oversize for press fits. 1045 cold-drawn keystock and slotted or coiled spring pins.
Sizes1/8 to 1/2 in, 3 to 12 mm; key 1/8 to 1 in
Price basisPack of 10 or 25; per 12 in
Steel and 6061 aluminum bar cut to length
1018 and 1045 cold-drawn round and flat, 6061-T6 round, square and flat. Sawn within plus 1/16 in, ends deburred, length painted on.
Sizes1/4 to 3 in steel, 1/4 to 4 in Al
Price basisPer foot cut plus per-cut charge
A36 and 6061 plate blanks cut to size
Hot-rolled A36 saw-cut and squared with mill scale left on unless asked. 6061-T651 with the protective film kept on the faces.
Thickness3/16 to 1 in steel, 1/4 to 2 in Al
Price basisPer blank by size and thickness
Assembly consumables
Medium removable and high-strength threadlocker, copper and nickel anti-seize, sulfurised tapping fluid, deburring tools, countersinks, 4.5 in flap discs.
Grits60 and 80 flap discs
Price basisPer bottle, can, each or case
How to read a fastener designation
Five fields, always in this order1/2-13Diameter and pitch
× 2 inLength
Hex Cap ScrewFamily
SAE Grade 8Grade or alloy
Yellow ZincFinish
Diameter and pitch. In inch sizes, 1/2-13 means half-inch nominal with 13 threads per inch, which is UNC coarse. 1/2-20 is the fine thread, UNF. Below 1/4 in the diameter is a number gauge: #10-24 coarse, #10-32 fine. Metric reads the other way round: M12 × 1.75 is 12 mm with 1.75 mm between crests, and if no pitch is given it is coarse.
Length. Measured from under the head to the tip on hex and socket head cap screws. Flat heads are the exception: their length is overall, because the head sits flush in the countersink.
Grade or alloy. This is where most lists go wrong. "Hardened" is not a grade. Grade 5, Grade 8, A574, 18-8, 316 and B7 are. If your list says "stainless" with nothing after it, our reply will ask which one before it quotes.
Finish. Plain, black oxide, clear zinc, yellow zinc or hot-dip galvanised. Galvanised screws need nuts tapped oversize to clear the coating, and we never zinc-plate stainless. The configurator blocks those combinations before you send them.
Most common error
Missing pitch
"3/8 bolts" fits 3/8-16 and 3/8-24. They do not thread into each other. Send the pitch or send a sample.
Second most common
Bolt grade without a nut grade
A Grade 8 screw on a Grade 2 nut strips the nut first. See the matching table on nuts and washers.
Counts
Round up to the box
Commodity sizes go out in full boxes: 100 at small diameters, 50 or 25 as diameter climbs. The section page says which.
Price basis, not price list
Why the catalogue shows a basis and the reply shows a number
Steel bar moves with the mill, plated fasteners move with zinc, and a box of 7/8-9 Grade 8 costs what the last pallet cost. A printed price list for 22 lines would be wrong by the end of the month. So every section states the unit we sell in and the reply puts a figure against it for your exact list.
For cut blanks the basis has two parts: the material per foot or per blank, and a per-cut charge for the saw time and deburring. Twelve pieces cut from one bar cost less per piece than twelve pieces each from a different size. The reply breaks that out line by line, so you can see which cut is driving the total and change it if you want to.
A quote is good for the date written on it. Nothing is picked or cut until you confirm in writing.
UNITS / Price basisBy section
- Box of 100
- Socket screws, nuts, washers, rivet nuts, spring pins
- Box of 50 / 100
- Hex cap screws by diameter
- Box of 25 / 50
- Wedge and drop-in anchors
- Box of 250 / 500
- Aluminum blind rivets
- Per foot cut
- Bar, plus a per-cut charge
- Per blank
- Plate by size and thickness
- Per each
- B7 stud sets, taps, setting tools
- Per case
- Flap discs, cutting fluid
Send the list.
Thread, length, grade, finish, count. We reply in writing with what is on the shelf, what is not, and when the rest can be picked up or shipped.
