Section 04 / Rod and studs

Threaded rod cut to length, B7 studs with 2H nuts.

Zinc all-thread from 1/4 to 1 in UNC, sold by the stick or as threaded rod cut to length with the cut end chased clean. ASTM A193 B7 studs leave as sets with two A194 2H heavy hex nuts, because a B7 stud with a soft nut is a flange leak waiting for its first heat cycle.

1/4 to 1 in UNC B7 to 2.5 in Pickup or freight from Austin
MOD 04 / Price basisQuoted in writing
All-thread
Per 3 ft or 6 ft stick, or per cut piece
B7 studs
Per each, sold as stud plus two 2H nuts
Cut tolerance
+1/16 in, never short
Saw kerf
1/8 in per cut

No figure on this page is a binding quote. Send the thread, length and count and the reply comes back in writing with what is on the shelf.

Send a parts list
RACK 04-A / ALL-THREADZinc / UNC

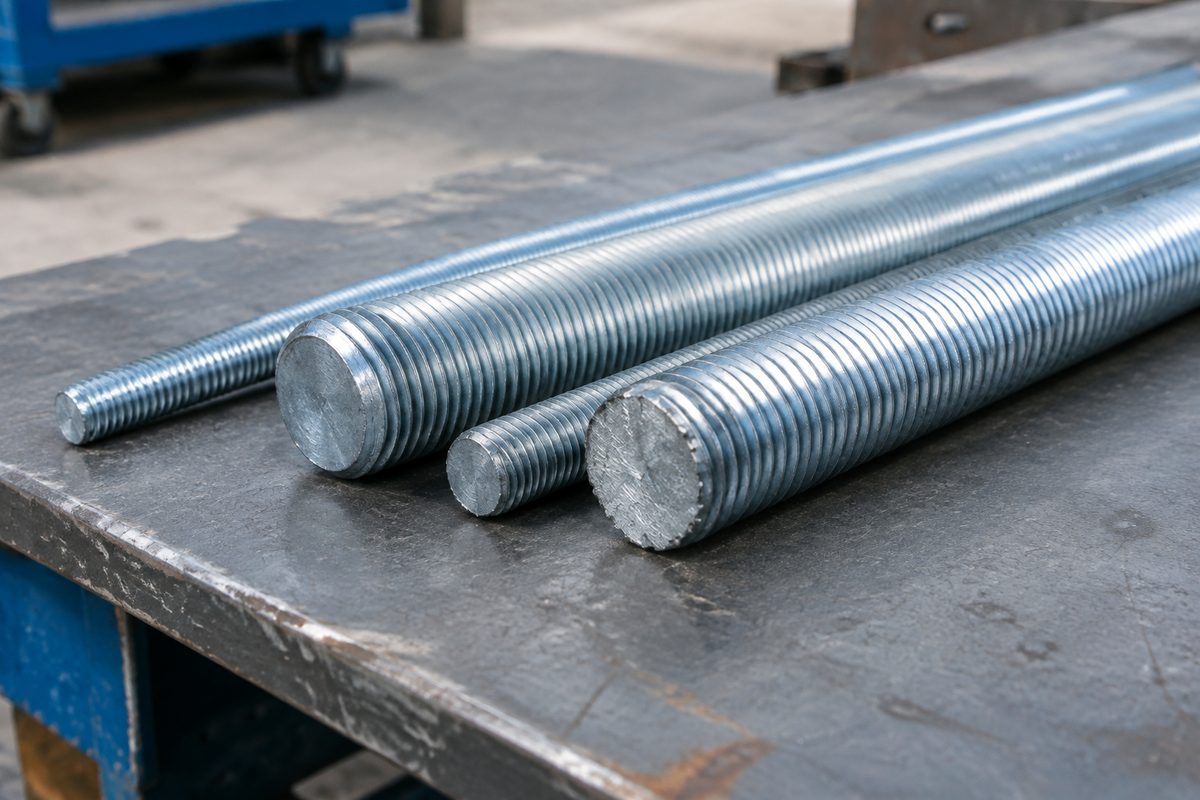

Zinc-plated threaded rods of several diameters, one freshly cut end in focus
The cut end in focus has been run through a die nut. If a nut will not start by hand on our cut, the piece goes back on the saw.
Line 04.1 / Zinc all-thread rod

Zinc all-thread rod, by the stick or cut

Low-carbon steel rod, rolled UNC thread, clear zinc plate. It hangs pipe and cable tray, clamps fixtures, ties back formwork and makes up whatever long bolt the job did not plan for. It is not a structural tension member in a load path, and we say so on the reply when the inquiry reads like one.

Sticks come in 3 ft and 6 ft. When you ask for threaded rod cut to length, we saw it, chase the cut end with a die nut so the first thread is clean, and knock the burr off with a file. Cut pieces are held to plus 1/16 in. Never short, because a hanger that is 1/16 in long gets another turn of the nut and a hanger that is short gets a new rod.

The failure we see most: someone buys a 6 ft stick, cuts it with a cutoff wheel on site, and then fights the nut for ten minutes on a mushroomed end. Have us cut it. Every piece in the bag is the same length, and the length is on the label.

Material
Low-carbon steel, clear zinc plated
Thread
UNC, 1/4-20 through 1-8
Stick lengths
3 ft and 6 ft
Cut pieces
Sawn, chased, deburred, +1/16 in
Price basis
Per stick of 3 ft or 6 ft, or per cut piece
BIN 04-B / B7 + 2HChromoly / plain

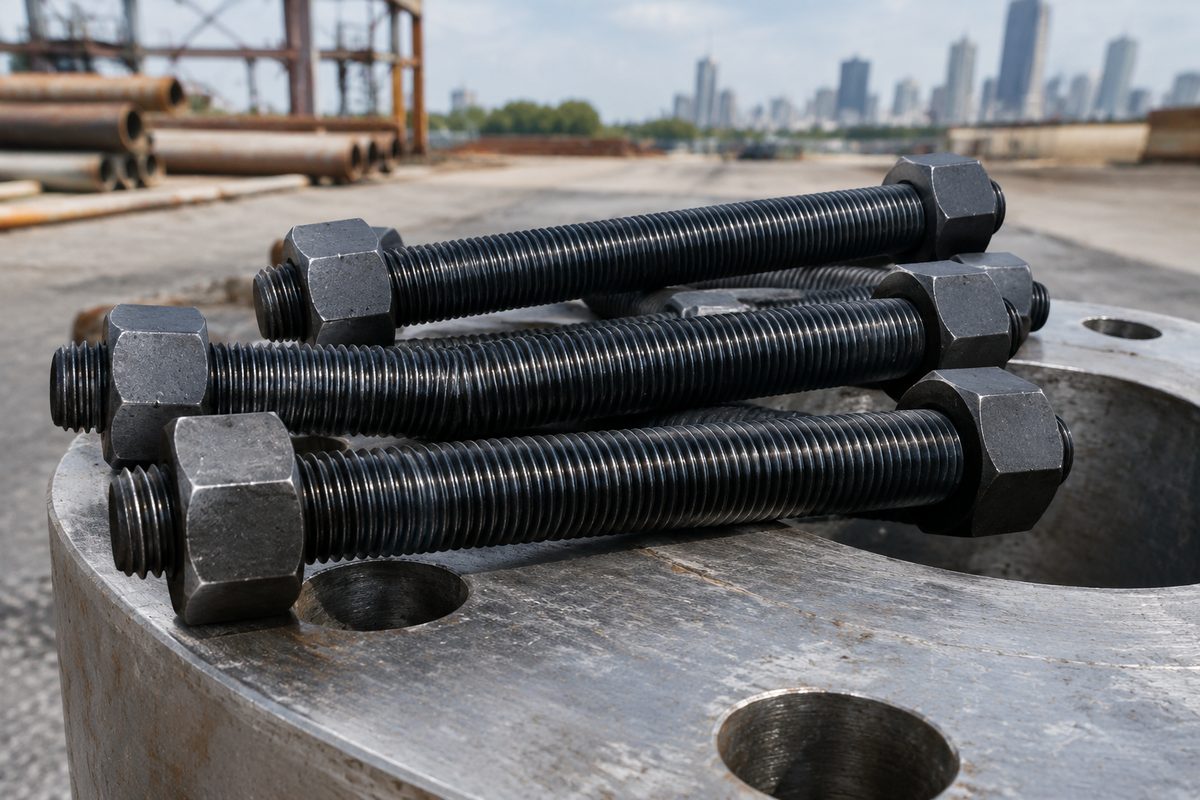

B7 studs with two heavy hex nuts each, laid on a flange face
Each stud is counted with its pair of nuts. You never get a box of studs and a separate box of nuts that do not add up.
Line 04.2 / B7 studs with 2H heavy hex nuts

ASTM A193 B7 studs, sold with their 2H nuts

B7 is quenched and tempered chromium-molybdenum steel, 125 ksi minimum tensile and 105 ksi minimum yield up to 2.5 in diameter. It is the default bolt for ASME flanges, valve bonnets and pump casings, where the joint sees pressure and heat at the same time. The stud end is stamped B7. The nut face is stamped 2H.

We sell B7 threaded studs with 2H nuts as a set: one stud, two A194 2H heavy hex nuts. The heavy hex pattern is 1/8 in wider across the flats than a finished nut, which spreads the load on the flange back face. Putting a Grade 5 finished nut on a B7 stud is the swap we refuse. It strips before the stud yields and you find out at hydrotest.

Length on a fully threaded stud is measured first full thread to first full thread, points excluded. Read it off the flange table for your class and give us that number. Finish is plain unless you ask, and if the flange lives outdoors on the coast, say so and we will quote what we can get.

Stud
ASTM A193 B7, 125 ksi min tensile to 2.5 in
Nut
ASTM A194 2H heavy hex, two per stud
Thread
UNC to 1 in, 8UN pitch above 1 in
Length
Measured thread to thread, points excluded
Price basis
Per each, sets of stud and two nuts

Need the stud as a configured spec? The configurator only offers B7 as a stud or rod and pairs it with a 2H nut automatically.

Thread sizes, stress area and wrench sizes

MOD 04 / Thread data
UNC rod and stud data, standard values
ThreadTensile stress areaFinished hex nut wrench2H heavy hex wrenchStocked as
1/4-200.0318 in²7/16 inn/aZinc rod
5/16-180.0524 in²1/2 inn/aZinc rod
3/8-160.0775 in²9/16 inn/aZinc rod
1/2-130.1419 in²3/4 in7/8 inZinc rod, B7 stud
5/8-110.226 in²15/16 in1-1/16 inZinc rod, B7 stud
3/4-100.334 in²1-1/8 in1-1/4 inZinc rod, B7 stud
7/8-90.462 in²1-5/16 in1-7/16 inZinc rod, B7 stud
1-80.606 in²1-1/2 in1-5/8 inZinc rod, B7 stud
Rule 01 / Minimum cut

Shortest piece we cut is 2 in

Below that the vise cannot hold the rod square to the blade. For shorter studs, ask about fully threaded studs instead.

Rule 02 / Kerf

Each cut eats 1/8 in

Four 18 in pieces do not come out of one 6 ft stick. Three do, with an offcut. We count kerf before we tell you how many sticks the list needs.

Rule 03 / Ends

Both ends chased, both ends chamfered

A nut must start by hand on either end. That is checked on the first and last piece of every batch.

Rule 04 / Labels

One length per bag

Mixed lengths go in separate bags, each labelled with thread, cut length and count. Nobody sorts rod on a lift.

From cut list to labelled bag

  1. You send the list

    Form, email or chat

    Thread, length, count, and for B7 the flange class if you have it. A sketch photo of the hanger layout is fine.

  2. We reply in writing

    Stock and lead time

    What is on the rack, how many sticks the cut list uses including kerf, and the price against each line. No phone quote without a written spec.

  3. Cut, chase, gauge

    At the saw

    Rod is sawn, both ends chased, and the thread spot-checked with a go/no-go ring gauge before it is bagged.

  4. Pickup or freight

    From Market Street

    Bags leave labelled. Long sticks ship bundled and taped at both ends so the plating is not chewed in transit.

ZAVTILOLOT 04-A
Thread3/8-16 UNC
Length14 in cut, +1/16
MaterialLow-carbon steel
FinishClear zinc
Count24 pcs
EndsChased, gauged

A sample of how a cut-rod bag is labelled. The same label format goes on B7 sets, with the nut grade on its own line.

Questions buyers ask at the counter

No. Low-carbon zinc rod is a hanger and fixture material. Flange bolting in pressure or temperature service is specified as A193 B7 with A194 2H nuts, and we will not quote the substitution.

On a fully threaded stud we measure first full thread to first full thread, not counting the chamfered points. That is how flange bolt tables list it, so give us the table length.

Yes. Rod is the exception to our box rule because it is priced per stick or per cut piece. One 14 in piece of 3/8-16 is a normal order.

Anyone who needs stainless or fine-thread rod as a stocked item, or anchor bolts bent to an L or J. We do not bend rod and we do not keep fine-thread sticks. Nuts and washers to go on the rod are on the nuts and washers page, and rod set into concrete usually starts at drop-in anchors.

Send the cut list.We count the sticks.

Thread, length and count per line. The written reply says how many sticks it takes after kerf and what is on the rack today.
